- Hign-concerned Chemical: None
- Model Number: TFA-01
- Type: Play house, Indoor
- Origin: Mainland China
- Packaging: 50
- Place of Origin: Zhejiang, China
- Inflatable: NO
- Sim Racing Simulator MOQ: 1 Set
GT7, Assetto Corsa G-force racing simulator, dynamic seat, four-axis G-force, simulation of racing dynamics, support profiles and Integrated stand, accurate adjustment, high dynamic synchronization rate of the picture, home experience flying life.
|
Product Name
|
SimorReal aluminum profile sim racing rig cockpit
|
|
Material
|
Aluminum profile, aluminum CNC machining panels, powder coated metal sheet
|
|
Accessories
|
Black screws, nut, joint, cup holder, adjust feet, angle bracket, slider, seat bracket, wheels
|
|
Related parts
|
Pedal, wheel mount, mouse mount, keyboard tray, PC holder, shifter, monitor stand, vesa mount
|
|
Service
|
OEM, ODM available
|
|
Color
|
Black, Silver, Blue, Gold, Gray
|
4 DOF G-force included? (90% new)

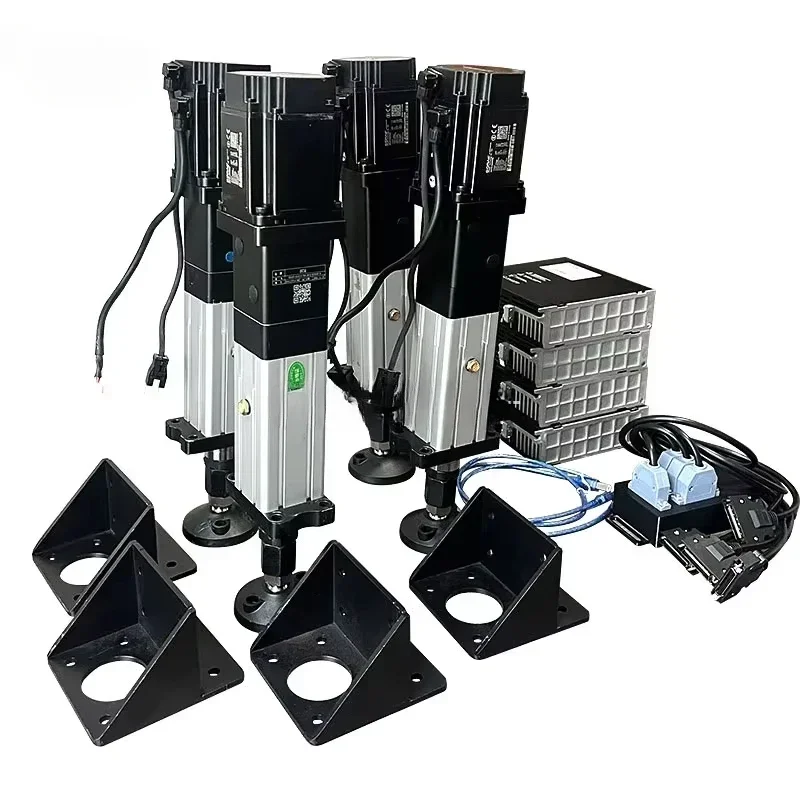

1. Four-axis G-force electric cylinder (including carbon steel adapter plate)
2. Four sets of industrial servo motors, servo controller
3. One four-axis controller
4. Power cable, screw accessories
5. Four-axis without traction
6. Four-axis with 3DOF motion of heave, pitch, roll
7. Cylinder speed500mm/s, power 750W
8. Surge travel 120mm, tail stroke 400mm, Upper four-axis travel 58mm
9. Voltage 220v (110v need extra transformer)
10. Package size: 60x60x60cm
11. G.W.: 36kgs
G-force included? (90% new)
1. Four-axis G-force electric cylinder (including carbon steel adapter plate) 2. Four sets of servo motors, servo controller 3. One four-axis controller,one Sideslip controller 4. One Sideslip aluminum profile base (Double cylinder, double motor servo) 5. Power switch, Data cable, Power cord 6. Includes game G-force training presets and remote software teaching services 7. One-year product warranty after-sales work, can provide simulator related consulting services
9. G.W.: 90kgs

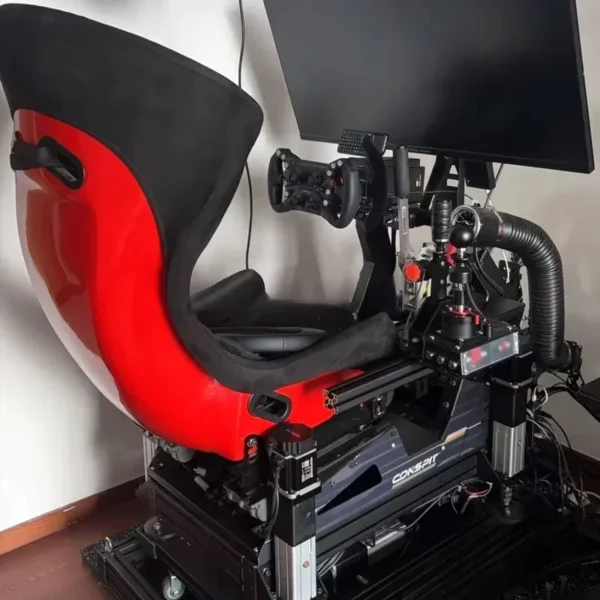

Aluminum Profile Sim Racing Simulator Cockpit
Aluminium profile sim racing rigs is a true all in one formula/GT/Hybrid position racing cockpit pushing the boundaries of what is expected of an aluminium profile cockpit and setting a new standard for sim racing. It is among the most sturdy sim rigs available on the market. They are often used to eliminate any flexing when racing with powerful racing wheels. SimorReal sets the functionality and quality for an aluminium profile cockpit or what’s commonly referred to as an 8020 racing simulator cockpit. Sim racing with powerful direct drive wheel bases can often make sim rigs vibrate and flex during heavy use.
Does sim racing improve real driving?
Sim racing’s biggest advantage is helping drivers train their minds. It is very mentally demanding. For some, it’s even more
mentally demanding than real-life driving. To understand how to use it, we will first break down each of our mental states while driving.
What are the ergonomics for sim racing?
Advantage: High precision, good stability, suitable for simulating car suspension and body
dynamics, after debugging, suitable for the mainstream racing games on the market, body dynamics and game screen synchronization
rate is high, driving experience is better, not motion sickness.
Support software: Simtools, Flypt, and
Support Gaming:
Compatible with gt7,gts of PS5, and almost games of PC.
The newly designed pedal tray give the extra flexibility needed to handle a wide variety of seating positions. It covers movement in all directions including completely flipped around to have the pedals sit on the deck. Also, its configured in such a way that it will accommodate different pedals sets, and the possibility to add an adjustable heel plate which we will release soon.
Connector Plates
The uprights are the main focus point when creating a rigid frame. Steering forces are creating a moment (torque force) at the base of the uprights, even more so with the high forces Direct Drive wheels are operating. To counter these effectively, a play-free connection of the upright is essential. These sandwich plates lock the uprights firmly into place. Because they are easy to install, success guaranteed.
Side Mounts
Standard the F1 is fitted with a shifter/accessories mount, running from the uprights to the back of the rig. Can be mounted both left and right. In addition, extra 2 profiles are provided to add the possibility of multiple configurations.
Key Features:
* Base structure featuring 160×40 mm aluminium profiles. Special sandwich plates lock the uprights from any movement.
* Dashboard bracket securely fixates you Servo Drive wheel (Mige, SimuCube)
* Movable seat position (can be positioned inclined)
* Steering wheel position fully adjustable
* Pedal position fully adjustable
* Side mounting point included that can be configured in different ways
* Fanatec pedals can be mounted without additional hardware. Heusinkveld pedals can be mounted without extra materials, all bolts/nuts included.
* Heel plate can be purchased separately.
* Different sizes of spare bolts to mount seat brackets, shifters, and pedals
Included in the package:
* Aluminium profiles and mounting materials
* Bolts for mounting seats and peripherals
* Rubber feet
If you’re a fan of racing games and want a truly immersive virtual driving experience, you’ll need to invest in a proper sturdy sim racing simulator. Far more than a basic wheel and pedal setup, a sim racing cockpit is a serious improvement. It takes it feel like you’re really tearing down the track. There’s a wide range of models available, and finding the right one will help you kick your gaming sessions into high gear.
A sim racing cockpit does more than just look cool and signal how serious you are about virtual racing. Like the seat in your car, a racing simulator seat creates a stable platform for your constant steering and pedal pressing, which allows you to move the controls, rather than vice versa. A good racing sim seat setup will also help to optimize the ergonomics and placement of those controls, keeping the sim racing wheel and pedals in a natural position for increased control.
We’ve rounded up the best home racing sim seats for all budgets and spaces. Welcome to figure out your own design, we have professional designers to assist for your wonderful product with 3D simulation to review.
